T
his project involves the design and fabrication of fire-fighting systems for a client operating in the oil & gas, marine, and chemical plant sectors, with facilities based in the United States. The client emphasizes the adherence to industry standards, with all process piping following ASME B 31.3 specifications. Additionally, all materials used in piping and structural construction must meet the relevant ASTM standards.
_____________________
Challenges
Project Overview:
• Client in the Fire Fighting System (Oil & Gas, Marine, Chemical Plant) design and fabrication company, having facilities in United States.
• All process piping accordance with applicable ASME B 31.3.
• All materials used in piping & Structural construction shall meet applicable ASTM standards..
• Client in the Fire Fighting System (Oil & Gas, Marine, Chemical Plant) design and fabrication company, having facilities in United States.
• All process piping accordance with applicable ASME B 31.3.
• All materials used in piping & Structural construction shall meet applicable ASTM standards..
_____________________
Approach
Project Scope:
.

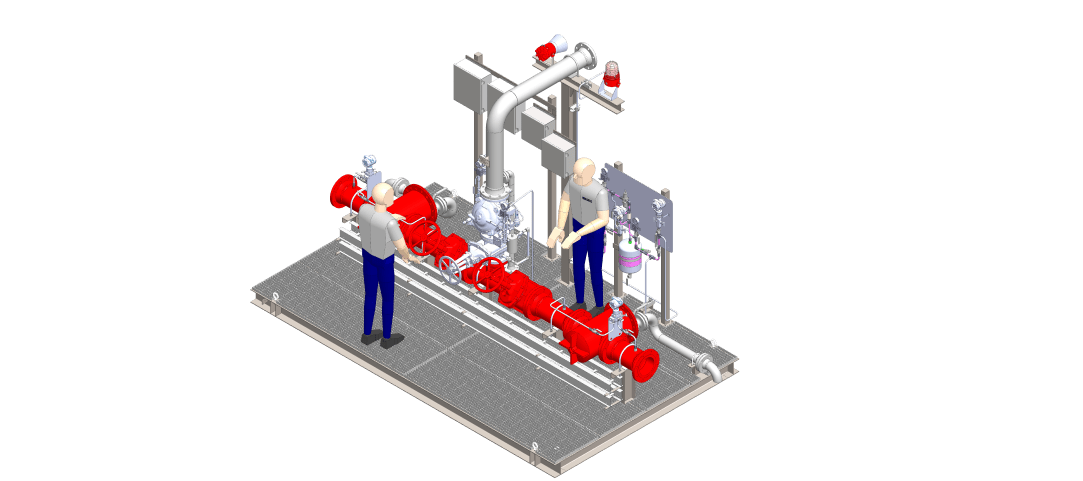

• Process Skid Layout Design (3d Model) .
• Structural Analysis for Skid Base Frame .
• Skid Base Frame Lifting Analysis .
• A complete set of design & detail engineering 3D Model and fabrication drawings developed in SOLIDWORKS within the agreed project schedule..
Codes & Standards: .
• ASME B31.3 .
• ASTM .
• AISC .
• AWS
.
• Process Skid Layout Design (3d Model) .
• Structural Analysis for Skid Base Frame .
• Skid Base Frame Lifting Analysis .
• A complete set of design & detail engineering 3D Model and fabrication drawings developed in SOLIDWORKS within the agreed project schedule..
Codes & Standards: .
• ASME B31.3 .
• ASTM .
• AISC .
• AWS
_____________________
Conclusion
In conclusion, this project exemplifies a commitment to ensuring the highest standards in the design and fabrication of fire-fighting systems. Adherence to ASME B31.3, ASTM, AISC, and AWS standards guarantees the reliability, safety, and quality of the process skid. The use of SOLIDWORKS for 3D modeling and fabrication drawings reflects a commitment to precision and efficiency. This comprehensive approach ensures that the fire-fighting systems designed for various industrial sectors meet and exceed industry requirements, contributing to the client's success in the United States.
